ERGO-Lift Series

Electric Vacuum Lifter with Rigid Guidance

  • Glass platesInsulating glassWindowsXY Leightweight crane systemsCrane attachmentForklift attachment

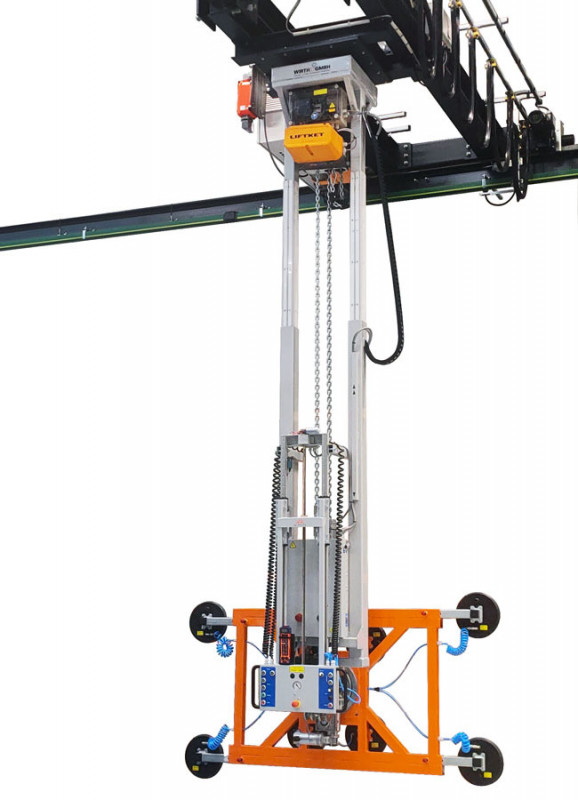

  • The OKTOPUS® ERGO-Lift is a rigidly guided vacuum lifter for loads up to 1000 kg, designed for double-girder X‑Y light overhead systems and twin-rail jib crane booms. The two-track carriage between the lift column and runway provides exceptional stability.

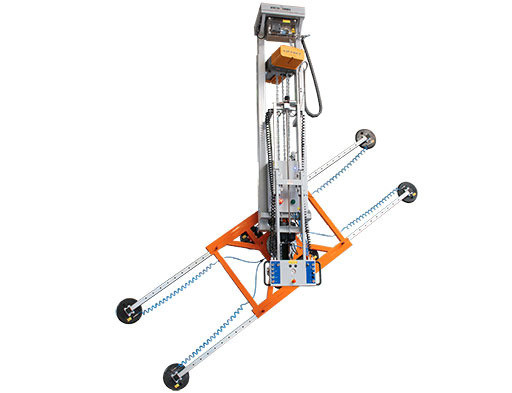

    Ergonomically placed controls allow operation while guiding the device by the handles, enabling a single operator to safely and ergonomically handle large glass panes. A wide range of suction-frame variants and tool-free extendable arms ensure flexible adaptation to load capacities and panel geometries.

    The lift column is electrically telescopic and stepless with continuous 360° rotation for exact positioning. Vacuum generation is selectable via regulated or unregulated ejectors or by electric vacuum pumps (230/400 V).

    Materials to be handled

    Glass panels, Insulating glass, Windows
  • 250 / 500 / 750 / 1.100

Attachment

Operation

  • Bedienteil am Gerät

Energy supply

  • Druckluft

Vacuum generation

Equipment

  • Ausziehbare Verlängerungen

Movements

  • Heben und Senken stufenlos elektromotorisch mittels Kettenzug

Enquiry about this device

Invalid Input

Invalid Input

Invalid Input

Invalid Input

Invalid Input

Invalid Input

  • Vacuum system: Dual circuit
  • pressure pneumatics: -0,65 up to -0,73 bar
